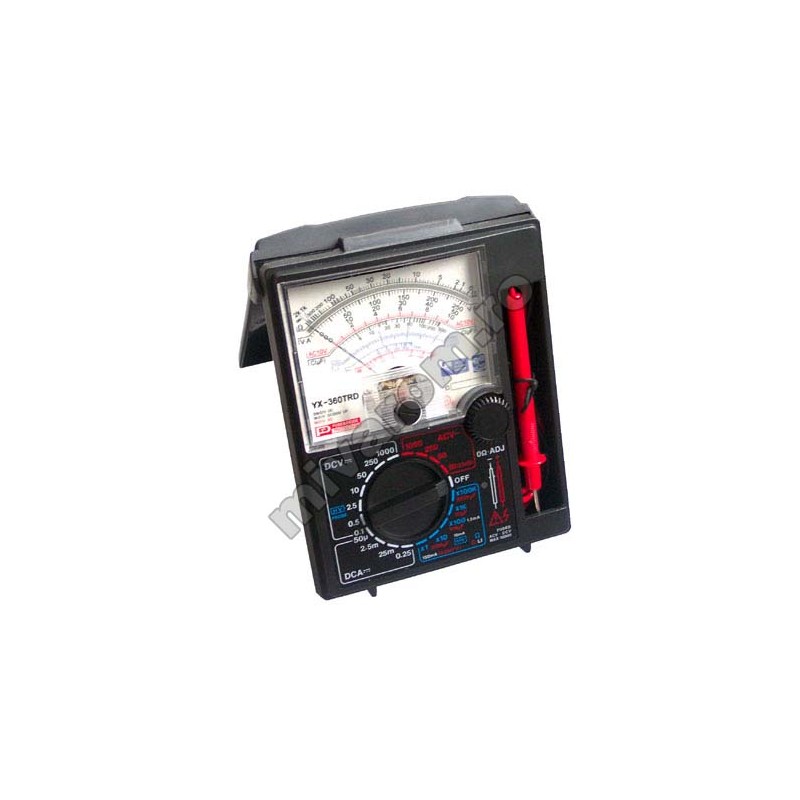

Multimetru analogic YX-360TRD engross

INTRODUCTION

This is a heavy-duty tester further improved in operability and portability.
The tester is vibration-resistant because of superiority in the designing of integral hard case, so that panel surface is free from scratches.
The connector less testing leads mounting shortens measuring time, and prevents loss or disconnection from occurring, thereby enabling reliability to be maintained.
The lid of the case can be used as a stand, and reverse folded and fixed to the back together.
Additionally, the case also carries a hand-strap convenient for hand-carrying.

Capacitance Measurement :Capacitance of an AC capacitor used in an AC motor can be measured with C range switched to.
Damage-Free Measurement :Measuring insulation resistance up to 200M ohm at a low voltage enables you to measure insulation resistance without damaging objects to be measured.
Resistant to Drop Shock :A taut band meter adopted protects the meter section from drop shock.
Stabilized Indication :Used of a high quality inner magnet stabilizes the indication of an indication needle.

FEATURES

In conformity with IEC 1010 CAT. 2

Protected by body cover that also serves as a stand. Carrying case is not required.

Test leads can be neatly stored in the hard case.

Enables you to measure high resistance (up to maximum 200M ohm) with
low voltage.

Capacity-measurement function(0.1F-10F).

Overload protection up to maximum 230V is provided.

High sensitive taut band meter with shock protection is equipped.

Provided with short strap for easy hand-carry.

The panel cover is free from dust and water drops.

SPECIFICATIONS

Meter sensitivity__ 48A

Range switch__ Manual

Accuracy guaranteed temperature & humidity range__ 232'c45-75% RH

Operating temperature humidity range__ 0-40'c, 80% RH Max. No condensation

Power supply__ R6 x 2

Fuse__ 0.5A/250V (20mm)

Accessory__ Instruction manual, Hand strap

Dimension__159.5 x 129 x 41.5 mm

Weight__ Approx. 320g

Function

Range
Accuracy
Remarks

DCV
0.1V

5% full scale
Input Impedance 20k

0.25/2.5/10/50V

3% full scale
Input Impedance 20k

250/1000

3% full scale

Input Impedance 9k

ACV
10/50/250/1000V

4% full scale

Input Impedance 9k/ V

30Hz - 100Hz within
3% full scale(AC10V range)

DCA
50A

3% full scale
Voltage drop 0.1V *1

2.5m/25m/0.25A

3% full scale
Voltage drop 0.25V *1

OHM
2k/20k/2M

3% of arc
Center value 20

Max value 2k

Release voltage 3V

200M

5% of arc

C
10F
-

*2

dB
-10dB --- +22dB(for 10VAC) --- + 62dB
-
Input impedance 9k/V

Li
0 - 150mA at X 10 range
Current across test pins

0 - 15mA at X 1 range

0 -150A at X 1k range

0 - 1.5A at X 100k range
