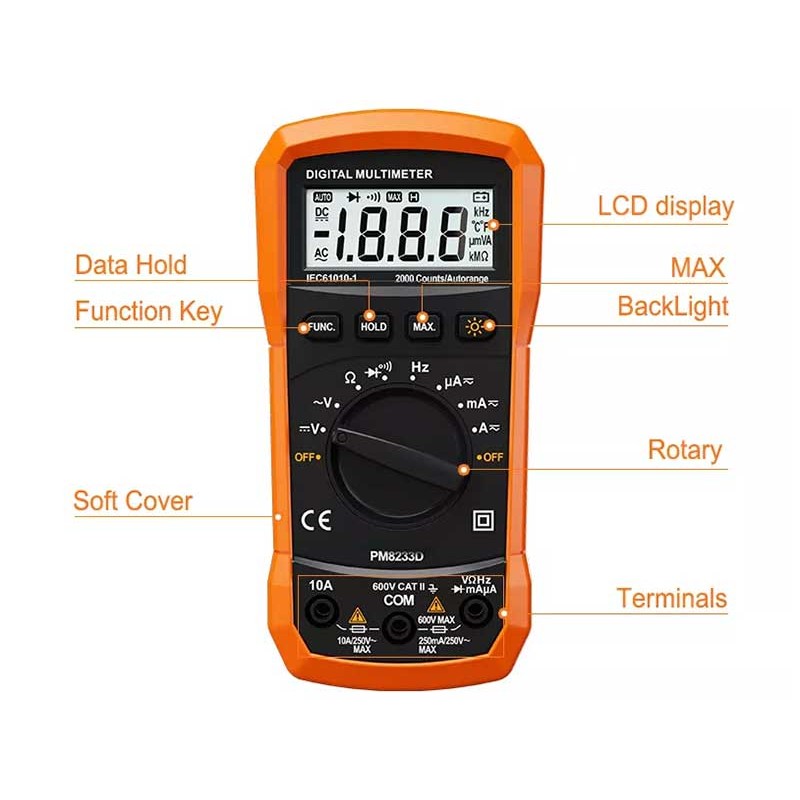

Multimetru PM8233D+ engross

This multimeter is a handheld and battery operated Digital Multi Meter(DMM) with multi-function. This Meter is designed to meet IEC61010-1 & CAT III 600V over voltage category and double insulation. The meter with holster that is giving the main body, though downsized, high resistance against the shock of a drop. This operating instruction covers information on safety and caution.  Please read relevant information carefully and observe all the warnings and note strictly. The DMM as general measurement tool and widely used in the school, laboratory, factory and other social field.

Features:

·        Display:2000 Counts

·        Auto range

·        Data hold

·        Back light

·        Diode test

·        Continuity

·        Maximum Value hold

Specifications

Range

PM8233D

DC Voltage

200mV/2V/20V/200V

±(0.5%+2)

600V

±(0.8%+2)

AC Voltage

2V/20V/200V/600V

±(1.0%+3)

DC Current

200μA/2mA/20mA/200mA

±(1.0%+3)

10A

±(3.0%+3)

AC Current

200μA/2mA/20mA/200mA

±(1.2%+3)

10A

±(3.0%+5)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ

±(0.8%+2)

20MΩ

±(1.0%+2)

Frequency

20kHz

±(1.0%+2)

Features

Display

2000 counts

Auto range

Yes

Data hold

Yes

Backlight

Yes

Diode test

Yes

Continuity

Yes

Maximum Value hold

Yes

General

Power supply

DC9V 6F22 battery

Weight

Approx. 110g
