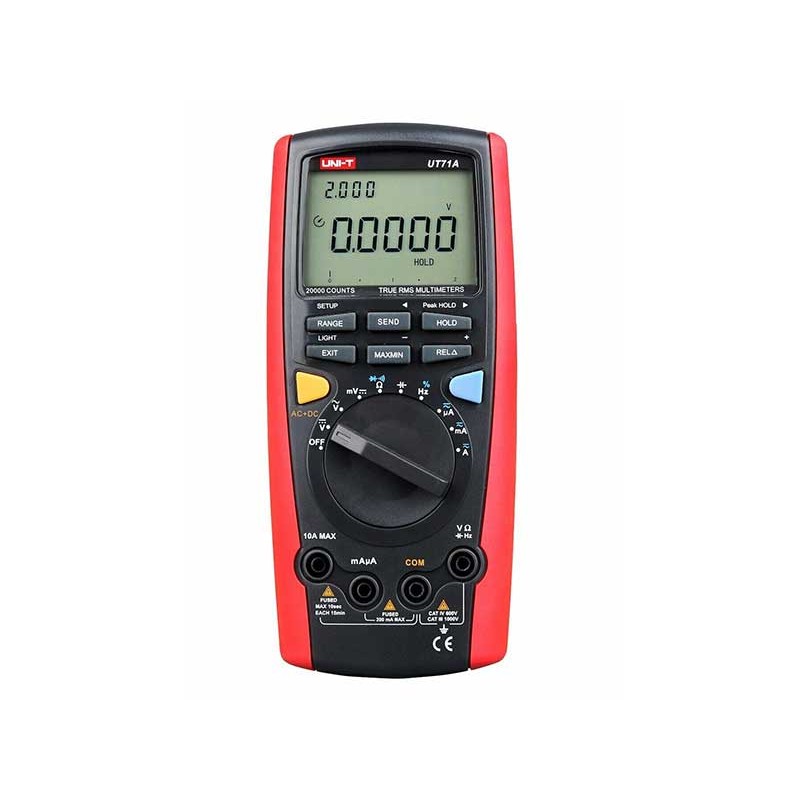

Multimetru UNI-T UT71A engross

DC Voltage (V) 200mV/2V/20V/200V/1000V ±(0.1%+8)

AC Voltage (V) 2V/20V/200V/1000V ±(0.8%+40)

DC Current (A) 200μA/2000μA/20mA/200mA/10A ± (0.2%+20)

AC Current (A) 200μA/2000μA/20mA/200mA/10A ± (1%+15)

Resistance (Ω) 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ ±(0.5%+20)

Capacitance (F) 20nF/200nF/2μF/20μF/200μF/2mF/20mF ±(1.5%+20)

Frequency (Hz) 20Hz-200MHz ±(0.1%+15)

Features

Display Count 　 19999

Auto Range 　 √

True RMS 　 √

Bandwidth (Hz） 100KHz √

Duty Cycle 10% ～ 90% ±(1%+30)

Diode 　 √

Auto Power Off 　 √

Continuity Buzzer 　 √

Low Battery Indication 　 √

Data Hold 　 √

Relative Mode 　 √

MAX/MIN 　 √

USB Interface 　 √

Double Backlight 　 √

Analogue Bar Graph 　 √

Full Icon Display 　 √

Setup 　 √

Input Impedance for DCV DC 200mV: Around 2.5GΩ，All Other Range： 10MΩ √

4 - 20mA Loop 0～100% 　

Fused 10 A 　 √

Current Measurement Alarm 　 √

Voltage & Current  AC+DC Measurement 　 √

General Characteristic

Power 9V Battery（6F22)

LCD Size 73mm X 50 mm

Product Color Red and Grey

Product Net Weight 384g

Product Size 200mm X 93mm X 40 mm

Standard Accessories Battery, Test Lead, Alligator Clip, Test Clip, USB Interface Cable,PC Software CD,Carrying Bag, English Manual
