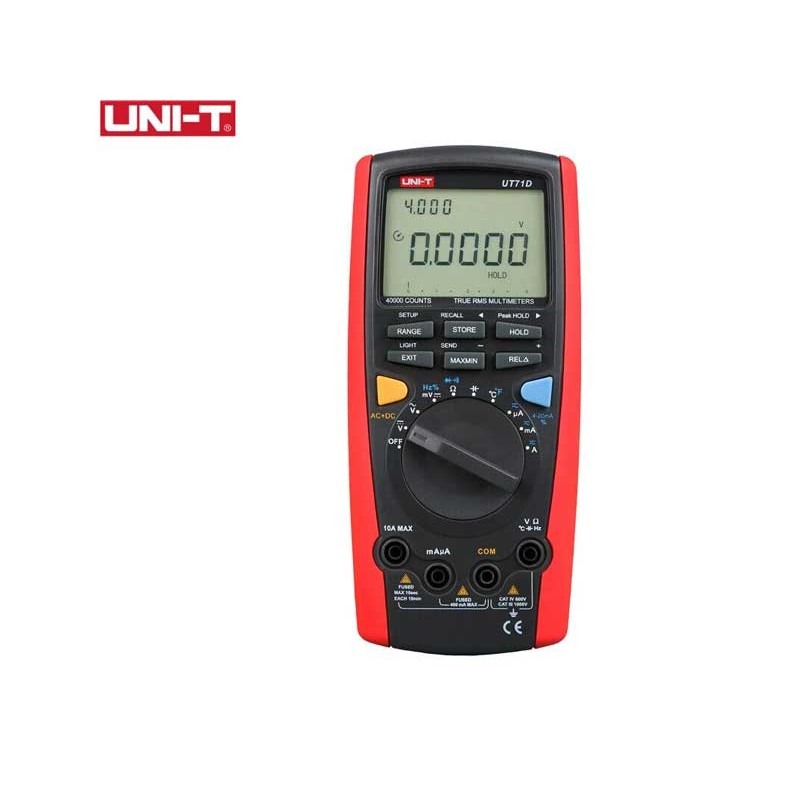

Multimetru UNI-T UT71D engross

DC Voltage (V) 400mV/4V/40V/400V/1000V ±(0.025%+5)

AC Voltage (V) 4V/40V/400V/1000V ±(0.4%+30)

DC Current (A) 400μA/4000μA/40mA/400mA/10A ± (0.1%+15)

AC Current (A) 400μA/4000μA/40mA/400mA/10A ± (0.7%+15)

Resistance (Ω) 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ ±(0.3%+8)

Capacitance (F) 40nF/400nF/4μF/40μF/400μF/4mF/40mF ±(1%+20)

Frequency (Hz) 40Hz-400MHz ±(0.01%+8)

Temperature (°C) -40 °C ～ 1000°C ±(1%+30)

Temperature (°F) -40°F～1832°F ±(1.5%+50)

Features

Display Count 　 39999

Auto Range 　 √

True RMS 　 √

Bandwidth (Hz） 100KHz √

Duty Cycle 10% ～ 90% ±(1%+30)

Diode 　 √

Auto Power Off 　 √

Continuity Buzzer 　 √

Low Battery Indication 　 √

Data Hold 　 √

Relative Mode 　 √

MAX/MIN 　 √

Data Logging 　 9999

USB Interface 　 √

Double Backlight 　 √

Analogue Bar Graph 　 √

Full Icon Display 　 √

Setup 　 √

Input Impedance for DCV DC 400mV: Around 2.5GΩ，All Other Range： 10MΩ √

4 - 20mA Loop 0～100% ±(1%+50)

Fused 10 A 　 √

Current Measurement Alarm 　 √

Voltage & Current  AC+DC Measurement 　 √

General Characteristic

Power 9V Battery（6F22)

LCD Size 73mm X 50 mm

Product Color Red and Grey

Product Net Weight 384g

Product Size 200mm X 93mm X 40 mm

Standard Accessories Battery, Test Lead, Alligator Clip, Test Clip, USB Interface Cable,PC Software CDe,Carrying Bag, Point Contact Temperature Probe, English Manual
