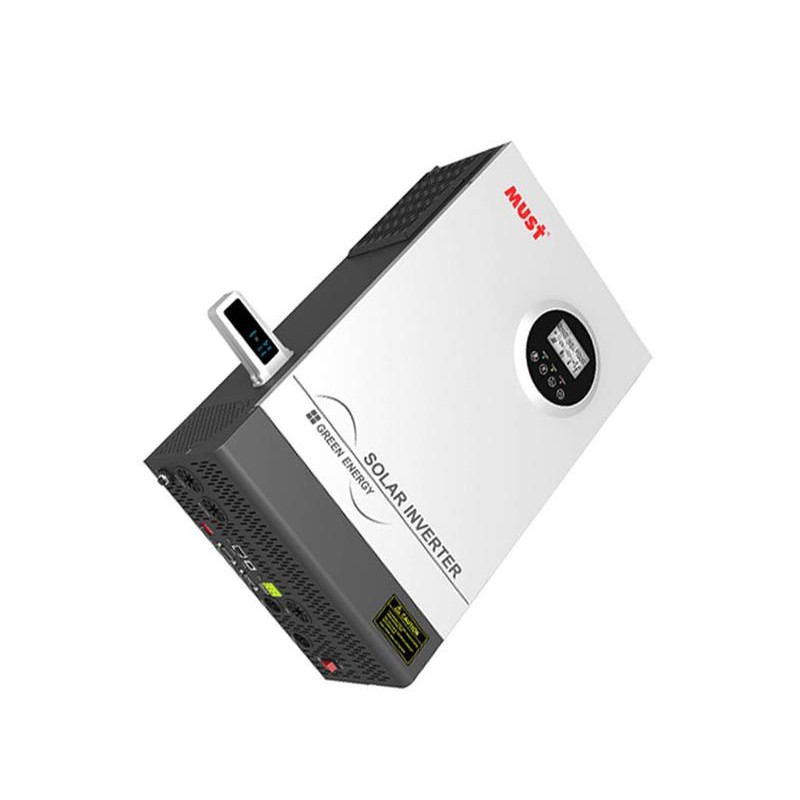

Invertor solar Off-grid 5,2Kw 48V PV PRO Alien engross
  • Invertor solar Off-grid 5,2Kw 48V PV PRO Alien engross

Invertor solar Off-grid 5,2Kw 48V PV PRO Alien engross

14010
Rating
2.252,48 lei
Nu include TVA
Cantitate
600 Produse

Descriere



Nominal Battery System Voltage                               48VDC

INVERTER OUTPUT

Rated Power      5200VA / 5200W

Surge Power      10400W

Waveform          Pure sine wave

AC Voltage Regulation (Batt.Mode)         230VAC±5%(Setting)

Inverter Efficiency(Peak)              93%

Transfer Time    10ms (UPS / VDE4105) / 20ms (APL)

AC INPUT

Voltage 230VAC±5%

Selectable Voltage Range             170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)

Frequency Range             50Hz / 60Hz(Auto sensing)

BATTERY

Normal voltage 48VDC

Floating Charge Voltage 54.8VDC

Overcharge Protection  60VDC

SOLAR CHARGER & AC CHARGER

Maximum PV Array Open Circuit Voltage               450VDC

Maximum PV current     18A

PV Array MPPT Voltage Range    150~430 VDC

Maximum Solar Charge Current 80Amp

Maximum AC Charge Current     60Amp

Maximum Charge Current            80Amp

MECHANICAL SPECIFICATIONS

Machine Dimensions (W*H*D)(mm)       295*528*121

Package Dimensions (W*H*D)(mm)        628*425*251

Net Weight(kg) 14

Gross Weight(kg) 15

OTHER

Humidity              5% to 95% Relative humidity (Non-condensing)

Operating Temperature 0°C~50°C

Storage Temperature     -15? ~60?
