Sursa alimentare LCD CTN130 engross

Model Number: CTN130

Output Power: 101 - 200W

Output Type: Dual

Size: 190*130*28mm

Input Voltage: 100-240V

Output Voltage: 5V/12V/24V

Type: DC/AC Inverters

Output Frequency: 45~55KHz

Output Current: 2.5~7.5mA

Specifications

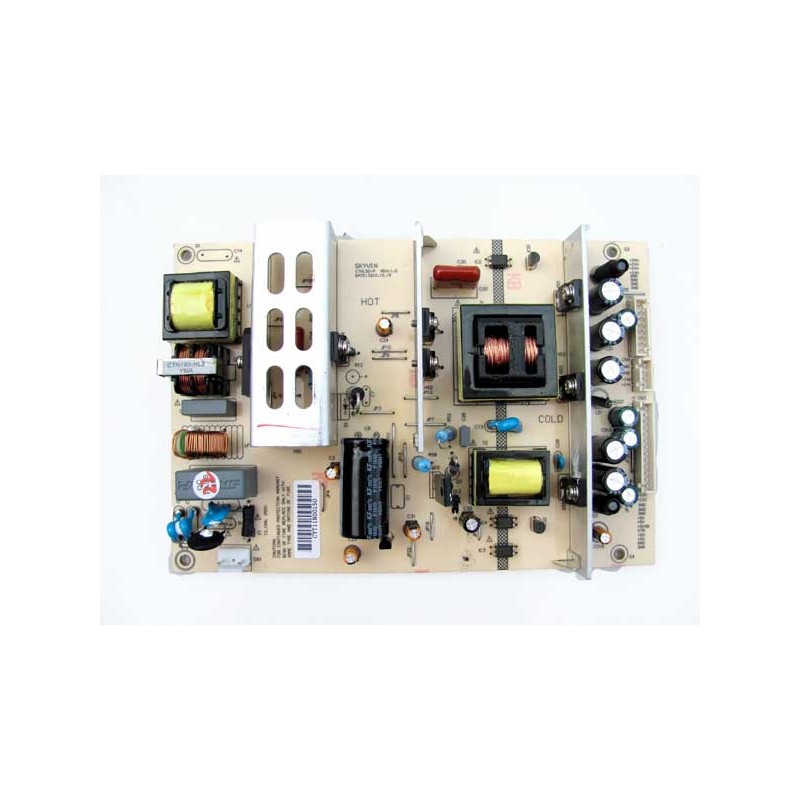

LCD power Inverter(CTN130)

1.Harmonic current:Meet EN60065-2002/IEC61000-3-2 CLASS D

2.Output Power:130W

3.Screen size:24~32"

LCD power Inverter(CTN130) is designed for A/D board and inverter.It's can be adapted to universal AC sources.

Efficiency(full load): 80% min at100V~; 84%min at 220V~

Standby power loss: ≤1W

Temperature:

Storage: -20°c~+80°c

Operation: 0°c~+45°c

Humidity:

Storage: 5%~95%RH,non-cindensing

Operating: 10%~90%RH,non-cindensing

Specification:

Apply for LCD:24"~32"

Vibration: 10-55Hz, 19.6/s2(2G),3 minutes period, 60minutes each along X, Y and Z axis.

Cooling Method: Ventilation cooling
