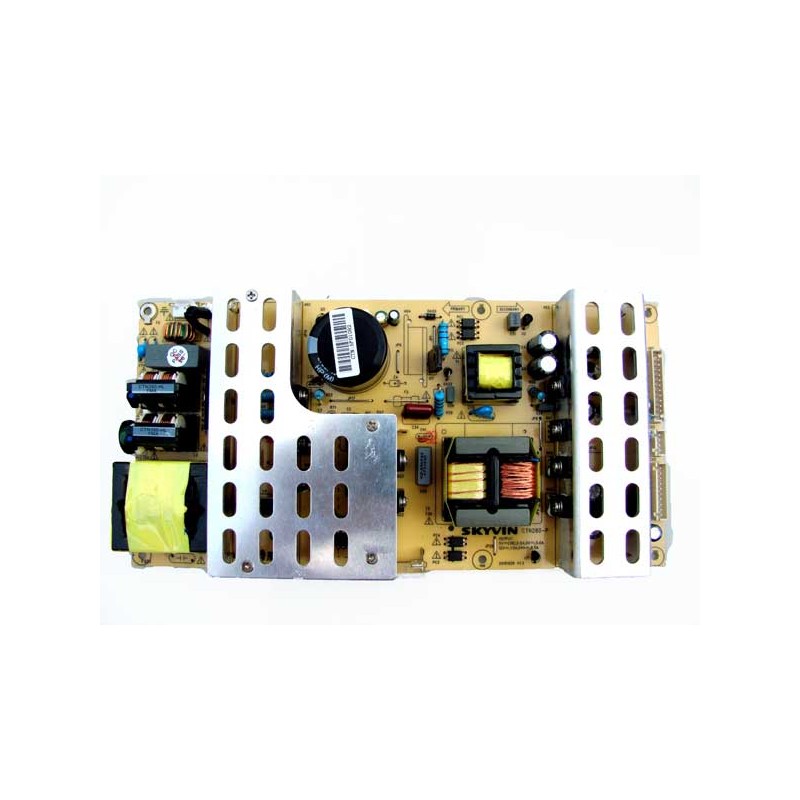

Sursa alimentare LCD CTN280 engross

LCD TV Power Supply for 37-42inch

Support for 37 to 42 inch LCD TV

Model:CTN280-P

Weight: 820g/1

Size:260 X 130 X 35 MM

Output:5VSB-0.5A; 5V-5A; 12V-1A; 24V-9.5A

Specifications

LCD power Inverter DC to AC(CTN280)

1.Meet GB17625.1-1998/IEC61000-3-2 CLASS D

2.Output Power:280W

3.Certified CB

LCD power Inverter(CTN280) is designed for A/D board and inverter.It's can be adapted to universal AC sources.

Efficiency(full load): 83% min at100V~; 86%min at 220V~

Standby power loss: ≤1W 240V~input; output current ≤ 50mA

Temperature:

Storage: -20°c~+80°c

Operation: 0°c~+45°c

Humidity:

Storage: 5%~95%RH,non-cindensing

Operating: 10%~90%RH,non-cindensing

Specification:

Apply for LCD:37"~42"

Vibration: 10-55Hz, 19.6m/s2(2G),3 minutes period, 60minutes each along X, Y and Z axis.

Cooling Method: Ventilation cooling
