Sursa alimentare LCD CTN308 engross

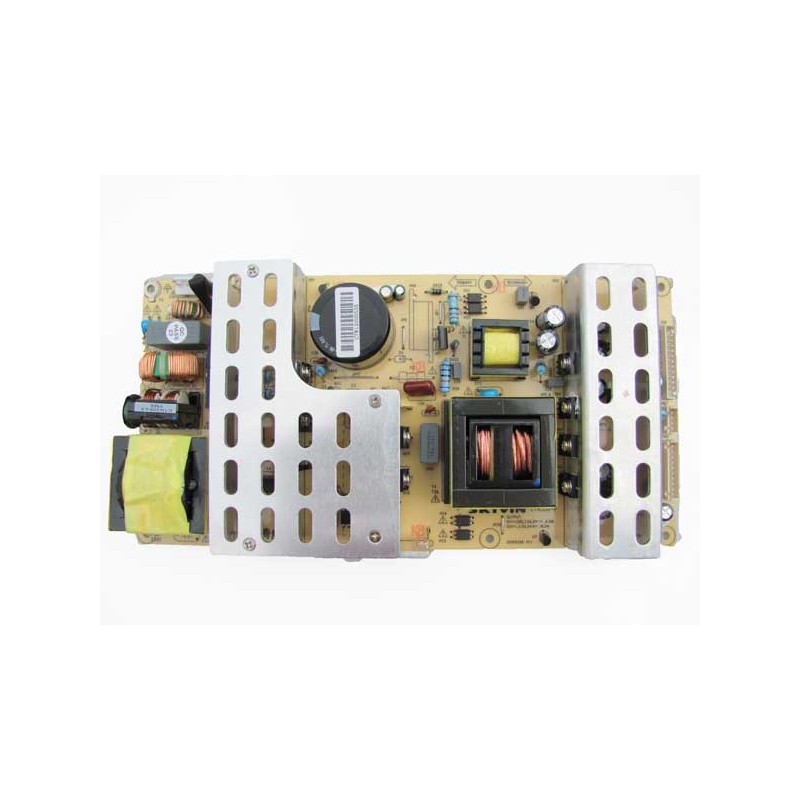

LCD TV Power Supply for 47inch 820g CTN308-P

Support for 47inch LCD TV

Model:CTN308-P

Weight: 820g/1

Size:260 X 130 X 35 MM

Input Voltage: 100v - 240v

OUTPUT: 5VSB-1.0A; 5V-4A; 12V-3A, 24V-10.0A

Specifications

308W LCD power Inverter DC to AC(CTN308)

1.Meet GB17625.1-1998/IEC61000-3-2 CLASS D

2.Output Power:308W

3.Certified CB

308W LCD power Inverter(CTN308) is designed for A/D board and inverter.It's can be adapted to universal AC sources.

Efficiency(full load): 82% min at100V~; 86%min at 220V~

Standby power loss: ≤1W 240V~input; output current ≤ 50mA

Temperature:

Storage: -20°c~+80°c

Operation: 0°c~+45°c

Humidity:

Storage: 5%~95%RH,non-cindensing

Operating: 10%~90%RH,non-cindensing

Specification:

Apply for LCD:42"~47"

Vibration: 10-55Hz, 19.6m/s2(2G),3 minutes period, 60minutes each along X, Y and Z axis.

Cooling Method: Ventilation cooling
