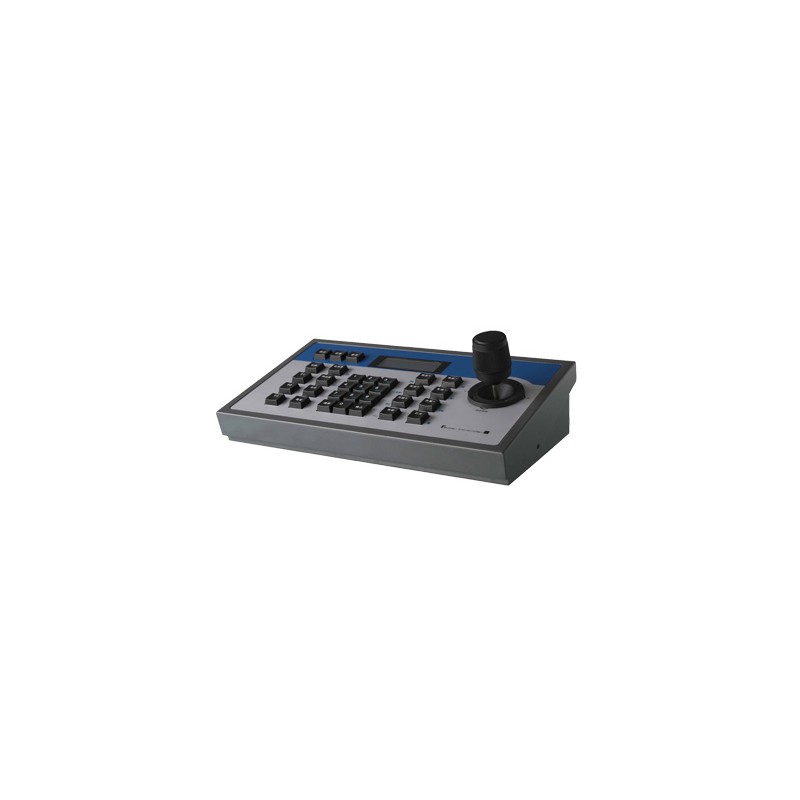

Panou control camere engross

Three dimensional PTZ keyboard controller

Display: 1601 green-screen LCD display

Communication baud rate: 1200, 2400, 4800, 9600, 19200 (bps)

Communication: RS485 Half-duplex

Interface: 5PIN pressure line terminal

Plastic boxes, conductive rubber keys

RS485 control bus: control up to 255 speed dome, 128 devices in parallel (Max.)

Communication ports:

- Lightning protection design

- Good antijamming capability

- Standard transmission distance: 1,200 meters

Cascade interface can be connected with 15 vice-controlled keyboard (Max.)

Good communication compatibility, built-in multi-protocol

The switch lock function of keyboards operation via code

The switches function of call sound

Infinitely variable speed transmission of speed dome

Power Supply: DC12V + / - 10%, 50HZ

Ambient Temperature: -10 ~ 55 degrees Celsius

Humidity: < / = 90% RH (no frost knot)

Dimensions (L x W x H): 305 x 148 x 82 mm

Approved: CE / FCC
