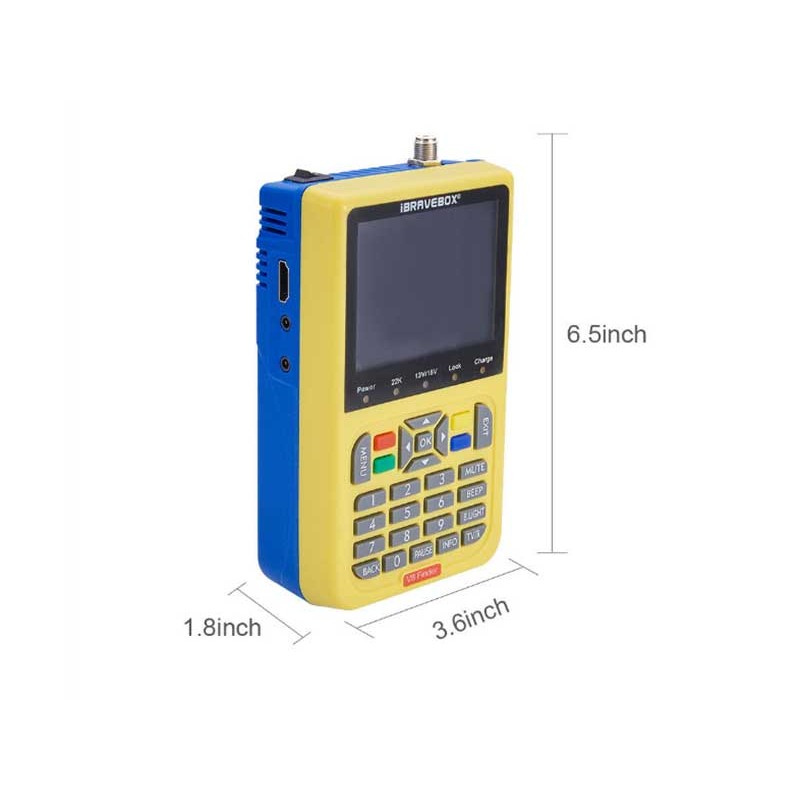

Satfinder digital iBRAVEBOX V8 H.264 HD engross

System capabilities: Full HD DVB-S/S2 Complian, Fully DVB compliant

Video Decode: AC-3,MPEG-2 MP@HL;H.264 BP MP&HP@L4.1;AVS profile@L6.1/4.0/2.0

PAL/NTSC: Automatic PAL/NTSC conversion

Channels Number: 6000 channels TV and Radio programmable

Favorites: 8 different favorite groups selection

OSD Language: English\German\French\Portuguese\Spanish\Italian\Russian\Turkish\Polish\Arabic \Farsi\Espanol\Deutsch

OSD Color: 16-bit OSD with anti-flickering

Channel Search: Channel search in automatic, manual and network search

Channel Edit: Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)

Easy Menu: Plug and Play installation, with an easy to use Menu System

SoftUpgrade: Software upgrade through USB

Save Channel: Automatic save for last channel

Li-oN Battery: Battery 3000mA

Power Supply: DC12V/1500mA (Input 100V ?240V, 50/60Hz)


Electric Performance

System resource:

Flash Memory: 64Mb Serial Flash

DDR3 Memory: 1Gb DDR3


LNB/Tuner input:

Connector: F type,male

Frequency range: 950MHZ-2150MHZ

Input Impedance: 75Ω

Signal lever: -65dBm~-25dBm

Active Ant Power: 13/18V DC @ 400mA MAX,Overload Protection

LNB switch control: 22KHz

DiSEqC: Ver 1.0/1.1/1.2


Demodulator:

Front end: QPSK(S);QPSK,8PSK,16APSK,32APSK(S2)

Modulation range: 2Mbps~45Mbps

SCPC and MCPC Capable: Yes

Spectral inversion: Auto conversion


Product Size: 95*155*45mm

Gift Box Size: 240*180*58mm

Weight (1 set): 0.5 Kg (N.W.)/0.85Kg (G.W.)

Panel display: 3.5 inch LCD

Display Color: Colour Screen

Output Interface: LNB IN*1, DV OUT, AV OUT, AV IN, USB,Power supply

HD: HD(up to 1080P) output
