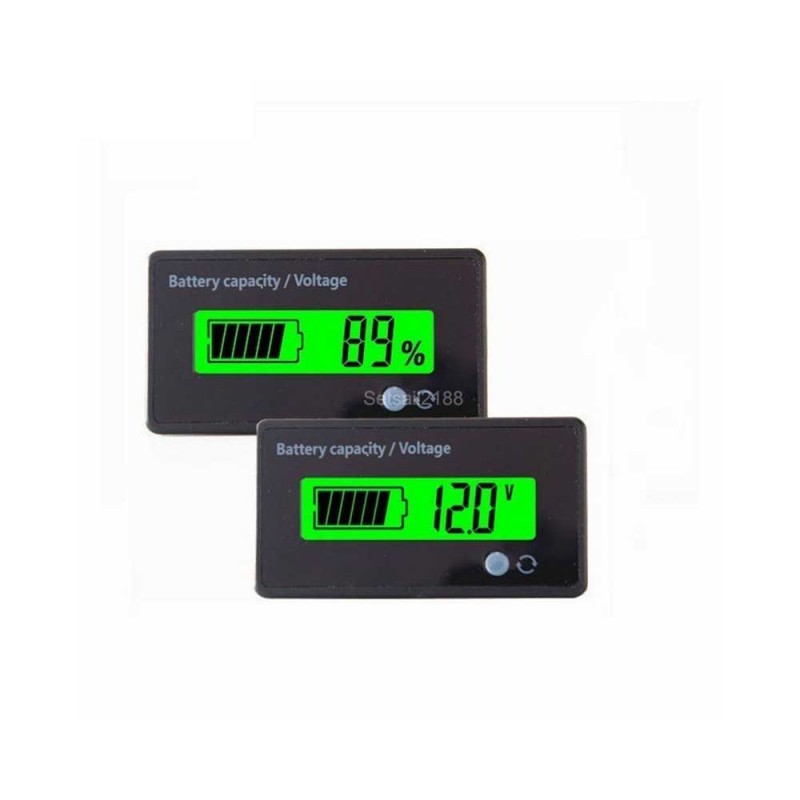

Tester acumulatori plumb acid (tensiune, incarcare) 12-72V engross

Specification:

Display :power+voltage, close the key for cycleVoltage Range:6-63v, products will display based on the voltage value. voltage fluctuations ,power meter will be follow as the voltage fluctuation (Comes with reverse polarity protection ,can be guarantee use effecively)

The product is suitable for lead-acid 12v.24v.36v.48v.(can be changes via key, specific please see setup instructions as below)The product is suitable for 3.7v lithium battery 2s-16s (can be changes via key ,detail information please see as below )

We will send 2-16s 12V-48V version,if you need 17-24s 60V 72V,pls contact with us.Cable length: 30cmInstructions:1 Press and hold switch on the product ,power on ,automatically select the interface (please follow as the code corresponds blow)2.Select your battery type after corresponding ,for example 3 series lithium battery you need to enter the selection screen ,press the key point to L3 interface ,then off,re-energized,choose success,such as the need to set 12v lead-acid batterise,the key point press to p12v interface ,power ,re-energized, both choose success3.instruments can be used if you select successful..meter shows the power interface ,tap switch, switch to voltage interface ,click the switch ,turn off the meter ,cycle shown as the code correspondsCode:Suitable forL2: 2 string lithiumL3: 3 string lithiumL4: 4 string lithiumL5: 5 string lithiumL6: 6 string lithiumL7: 7 string lithiumL8: 8 string lithiumL9: 9 string lithiumL10: 10 string lithiumL11: 11 string lithiumL12: 12 string lithiumL13: 13 string lithiumL14: 14 string lithiumL15: 15 string lithiump12v:12v lead-acidp24v:24v lead-acidp36v:36v lead-acidp48v:48v lead-acid
