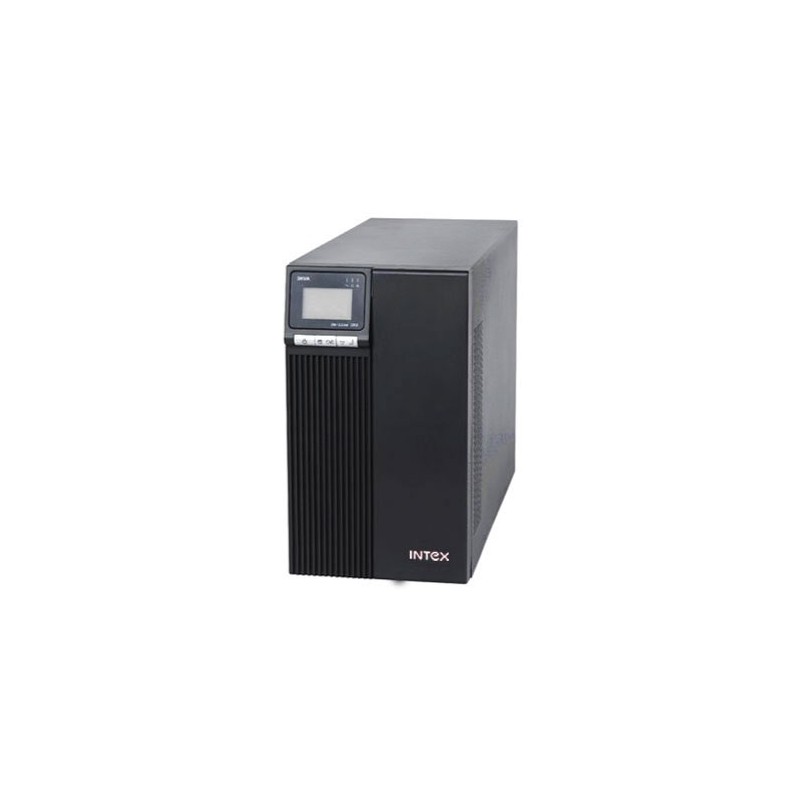

UPS online 2000VA Hawk Intex engross

Features :

High frequency and double conversion online technologyFully digitized microprocessor controlWide input voltage rangeLCD displayUPS start up without batteryCold startAdvance battery managementAutomatic battery charging in UPS off modeLightning and surge protectionShort circuit and overload protectionFan speed auto control when loads variesNetwork/Fax/Modem surge protectionOptional extension battery packBattery voltage displayLoad capacity displayEMI/RFI noise filterSmart RS232 communication with monitoring softwareOptional SNMP card slotEPO function (optional)Input Land N reserved alarm function

Technical Specifications:

As follow :Model MF1KVA MF2KVA MF3KVACapacity 1KVA/700W 2KVA/1400W 3KVA/2100WInput Voltage Range When load < 70%, input range is 115 ± 5VAC ~ 295 ± 5VACWhen load ≥70%, input range is 160 ± 5VAC ~ 295 ± 5VACFrequency Range 46-54Hz ± 0.5Hz or 56-64Hz ± 0.5Hz auto sensingPhase Single phasePower Factor ≥0.97Output Voltage Range 220/230 Vac ± 2%Frequency Range Synchronized with the utility on AC mode; 50Hz\60Hz ± 0.2% on Battery modeTHD (linear load) < 3%THD (non-linear load) < 6%Overload Capacity >110%, 30s turn to bypass mode; >150% 300ms turn to bypass modeCrest Factor 3:1 (max)Short Circuit Protection 5 cycles turn off inverter, no transfer to bypass, provide alam (AC mode)5 cycles turn off inverter, provide alarm (battery mode)input fuse blown or breaker action (bypass mode)Waveform pure sine waveTransfer Time Between AC Mode and Battery Mode: 0msBetween AC Mode and Bypass Mode: 4ms (typical value 2.5ms)Efficiency ≥83% ≥85%Battery Model 12V sealed lead acid maintenance freeDC Voltage 36VDC 96VDCBattery 3 x 12V/7AH 8 x 12V/7AHBackup Time (half load) 12 min 19 min 16 minBackup Time (full load) 5 min 8 min 5 minChange Current (standard unit) 1A 1A 1AChange Current (long time unit) 7A 7A 7ARecharge Time 90% capacity after 8 hrs chargingCommunication Interface RS232; SNMP (optional)LCD Indication 1. Input voltage/frequency, battery voltage, output voltage frequency, load watt/VA and percent, inverter temperature2. Operation mode such as “on line”, “on batt” or “or bypass”LED Indication 1. Green LED for normal operation2. Yellow LED for warning condition3. Red LED for abnormal operationNoise Level < 45dBEnvironment Temperature 0-40 °CHumidity 0%-95% (non-condensing)Altitude < 1500mStorage Temperature -25~55 °C
