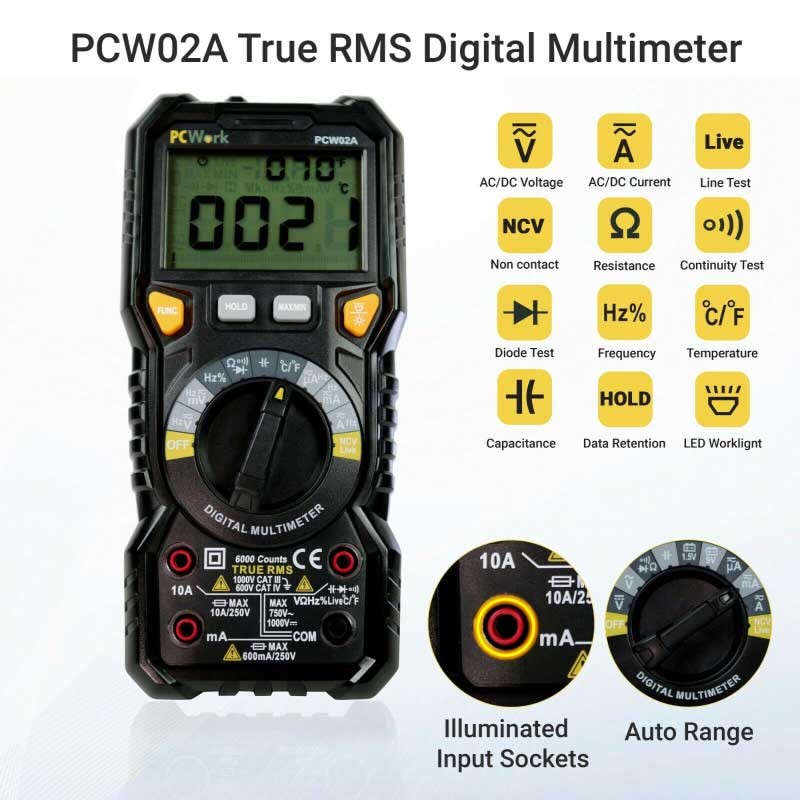

Multimetru digital true RMS NCV temperatura PCW02A engross

Features and Specifications:

• CAT III 1000V, CATIV 600V

• 6000 counts

• True RMS

• Auto Range

• AC/DC voltage, current, resistance,

capacitance, frequency, duty ratio, and

temperature measurement

• NCV (non-contact voltage), live line,

continuity, and diode test

• Double ceramic fuses, PTC thermistors

• 2.9” double color backlight LCD display

with bargraph function

• Data hold with Max/Min function

• LED illuminated input sockets

• LED work light and bracket

• Great packaging design and manual with

pictures in various languages: EN, GER, ES,

FR, PT, PL

DC Voltage: 600mV/6V/60V/600V/1000V ±(0.5%+3)

AC Voltage: 600mV/6V/60V/600V/750V ±(0.8%+5)

DC Current: 600uA/6000uA/60mA/600mA ±(0.8%+3); 10A ±(1.2%+3)

AC Current : 600uA/6000uA/60mA/600mA ±(1.0%+3); 10A ±(1.5%+3)

Resistance: 600Ω/6kΩ/60kΩ/600kΩ ±(1.0%+3); 6MΩ/60MΩ ±(1.5%+3)

Capacitance: 10nF/100nF/1μF/10μF/100μF/1mF ±(4.0%+3); 10mF/100mF ±(5.0%+5)

Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz ±(1.0%+3); 10MHz ±(3.0%+3)

Duty: 1%~99% ±(3.0%+3)

Temperature (°C): -20°C~1000°C ±(1.0%+3)

Power Supply: 2*1.5V AA Batteries; Auto Power-Off function

Size: 188*88*58mm

Weight: 350g

Safety Rating: CE; EN61010-1,-2-030 EN61010-2-033, EN61326-1
