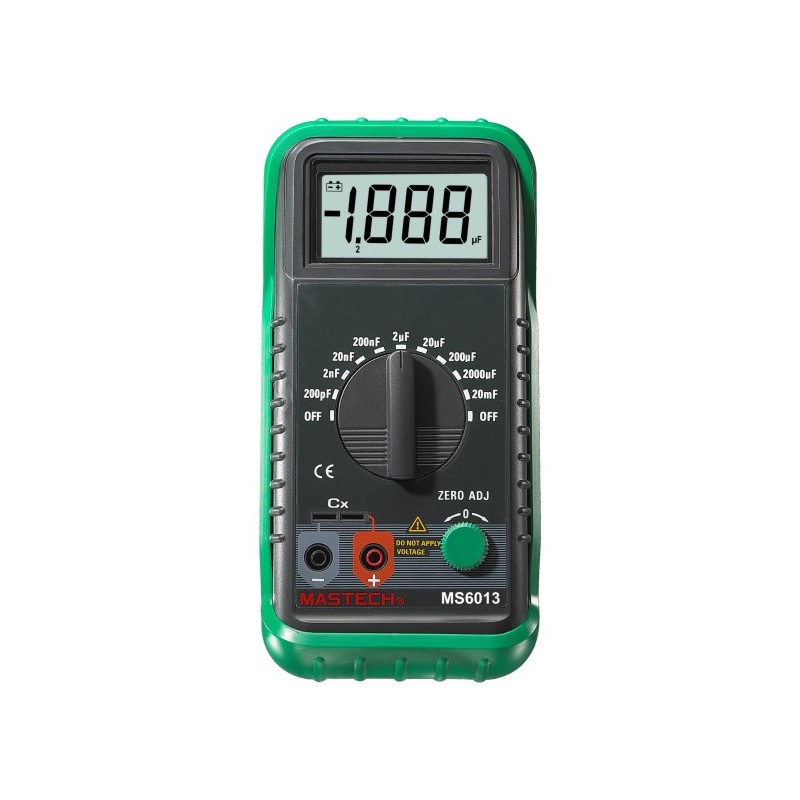

Capacimetru MS6013 Mastech engross

The digital capacitance meter gives a direct reading of capacitance on a 3 1/2 digits LCD display. Nine ranges give precision readings from 0.1pF to 20mF, which included virtually all capacitors used in electronic engineering laboratory, production, service shops and schools. Its battery operation, light weight and small size make it a truly portable instrument.

Features:

21mm LCD display provided a max. Indication of 1999

Nine ranges from 0.1pF to 20mF

High accuracy in measuring

External knob adjustment of the zero value of the display, approx. ±20pF

Dual-slope integration A/D converter

Overload indication of "1"

Safety designed test probe

Specifications:

Capacitance

200pF/2nF/20nF/200nF/2μF/20μF/200μF: ±0.5%
2000μF: ±1.0%
20mF: ±2.0%

General Characteristics:

Size: 91mm x 189mm x 31.5mm

Weight: Approx. 210g

Power: 1 * 6F22 (9V) Battery (not included)

Package Size: 24 * 17 * 6.5cm / 9.5 * 6.8 * 2.5in

Package Weight: 600g / 1.3lb

Package List:

1 * MASTECH MS6013 Digital Capacitance Meter

1 * Test Lead

1 * English Manual
